Introducing the flagship energy-saving EPS shape molding machine from Dongshen, ingeniously designed and branded as the FAV1200E-1750E Polystyrene Cutting Machine. Our cutting-edge machine brings to your doorstep an unmatched level of efficiency, especially in shaping and molding EPS. Our Polystyrene Cutting Machine is renowned for its contribution in various production industries. This truly versatile equipment is primarily used in conjunction with molds to generate a wide range of packaging products; the most common include electrical packing, seedling trays, and vegetable and fruit boxes. With Dongshen’s Polystyrene Cutting Machine, businesses can benefit from precise EPS cutting and molding. The machine is designed to eliminate waste, reduce energy consumption, and maximize productivity. Regardless of your molding needs, the FAV1200E-1750E provides a one-stop solution. Notably, the Polystyrene Cutting Machine plays a pivotal role in promoting sustainable business practices. It curbs the excessive use of energy in the manufacturing process, thus reducing the carbon footprint. The machine integrates advanced energy-saving features, making it not only a cost-efficient choice but also an environmentally friendly solution. The Polystyrene Cutting Machine is well-known for its durability and minimal maintenance requirements. Built to last, it significantly cuts down your operational costs over time. This reliable machine ensures a smooth production process, leading to enhanced productivity and profitability.

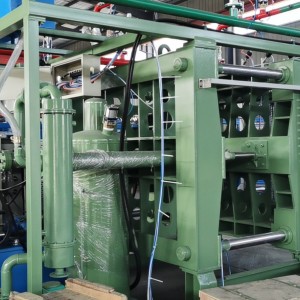

Machine Introduction

EPS Shape Molding Machine is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF etc. With different moulds, the machine can produce different shape.
Energy saving type shape molding machine has efficient vacuum system, fast hydraulic system, and fast drainage system. For the same product, cycle time in E type machine is 25% shorter than in normal machine, and energy consumption is 25% less.
Machine completes with PLC, touch screen, filling system, efficient vacuum system, hydraulic system, electric box

Main Features

1.Machine plates are made of thicker steel plates so it’s long lasting;
2.Machine has efficient vacuum system, vacuum tank and condenser tank separate;
3.Machine use fast hydraulic system, saving mould closing and opening time;
4.Different filling methods are available to avoid filling problem in special products;
5.Machine uses big pipe system, allowing low pressure steaming. 3~4bar steam can work the machine;
6.Machine steam pressure and penetration steaming are controlled by German Pressure manometer and pressure regulators;
7.Components used in the machine are mostly imported and famous branded products, low malfunction;
8.Machine with lifting legs, so client only need to make a simple working platform for workers.

Technical Parameter

Item		Unit	FAV1200E	FAV1400E	FAV1600E	FAV1750E
Mould Dimension		mm	1200*1000	1400*1200	1600*1350	1750*1450
Max Product Dimension		mm	1000*800*400	1200*1000*400	1400*1150*400	1550*1250*400
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3’’(DN80)	4’’(DN100)	4’’(DN100)	4’’(DN100)
	Consumption	Kg/cycle	4~7	5~9	6~10	6~11
	Pressure	Mpa	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Cooling Water	Entry	Inch	2.5’’(DN65)	3’’(DN80)	3’’(DN80)	3’’(DN80)
	Consumption	Kg/cycle	25~80	30~90	35~100	35~100
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Low Pressure Entry	Inch	2’’(DN50)	2.5’’(DN65)	2.5’’(DN65)	2.5’’(DN65)
	Low Pressure	Mpa	0.4	0.4	0.4	0.4
	High Pressure Entry	Inch	1’’(DN25)	1’’(DN25)	1’’(DN25)	1’’(DN25)
	High Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
	Consumption	m³/cycle	1.5	1.8	1.9	2
Drainage		Inch	5’’(DN125)	6’’(DN150)	6’’(DN150)	6’’(DN150)
Capacity15kg/m³		S	60~110	60~120	60~120	60~120
Connect Load/Power		Kw	9	12.5	14.5	16.5
Overall Dimension(L*W*H)		mm	4700*2000*4660	4700*2250*4660	4800*2530*4690	5080*2880*4790
Weight		Kg	5500	6000	6500	7000



Case

Product

Related video

---

Previous:Central Vacuum System

Next:FAV1200-FAV1750 Auto EPS Shape Molding Machine with Vacuum

---

As a leading manufacturer, Dongshen guarantees high-quality machines that are technologically advanced and designed to sustain in challenging industrial environments. With our Polystyrene Cutting Machine, you are investing in a solution that combines efficiency, sustainability, and value in a singular powerful package. Embrace the power of innovation with Dongshen's FAV1200E-1750E, the ultimate Polystyrene Cutting Machine that sets the bar high for EPS shape molding machines. Invest in this machine and redefine your production capabilities.
