Elevate your packaging production process with DongShen's top-tier EPS Foam Cutting Machine. This machine is not just another device in your inventory, but a vastly efficient tool that revolutionizes the way you create packaging products. Our EPS Foam Cutting Machine is designed to collaborate flawlessly with moulds and deliver exceptional results in crafting products such as electrical packing, vegetable and fruit boxes, seedling trays, and many more.

The product description

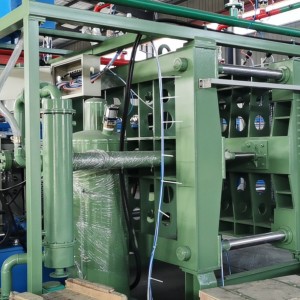

EPS ICF Block Making Machine is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF block etc. With different moulds, the machine can produce different shape.

Machine completes with PLC, touch screen, material hopper, efficient vacuum system, lifting legs

Main Features

1. Machine structure: All frames are welded by 16~25mm steel plate, very strong. Machine legs are made by high-strength H type steel profile, foundation is not required from clients.
2. Filling system: Machine allows three filling modes: normal pressure filling, vacuum filling and pressurized filling. Material hopper has sensor to control material level, material discharging is done with rotary discharging plates, total 44 discharging holes.
3. Steam system: adopt balance valve and Germany electric gauge switch to control steaming.
4. Cooling system: vertical vacuum system with water spray device at the top make vacuum efficient.
5. Drainage system: increase mould outlet and use 6 inch drainage pipe and big butterfly valve, make moud draining faster.

Technical Parameter

Item		Unit	FAV1200	FAV1400	FAV1600	FAV1750
Mould Dimension		mm	1200*1000	1400*1200	1600*1350	1750*1450
Max Product Dimension		mm	1000*800*400	1200*1000*400	1400*1150*400	1550*1250*400
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3’’(DN80)	4’’(DN100)	4’’(DN100)	4’’(DN100)
	Consumption	Kg/cycle	5~7	6~9	7~11	8~12
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Cooling Water	Entry	Inch	2.5’’(DN65)	3’’(DN80)	3’’(DN80)	3’’(DN80)
	Consumption	Kg/cycle	45~130	50~150	55~170	55~180
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Entry	Inch	1.5’’(DN40)	2’’(DN50)	2’’(DN50)	2’’(DN50)
	Consumption	m³/cycle	1.5	1.8	1.9	2
	Pressure	Mpa	0.5~0.7	0.5~0.7	0.5~0.7	0.5~0.7
Capacity15kg/m³		s	60~120	70~140	70~150	80~150
Connect Load/Power		Kw	9	12.5	16.5	16.5
Overall Dimension(L*W*H)		mm	4700*2000*4660	4700*2250*4660	4800*2530*4690	5080*2880*4790
Weight		Kg	5000	5500	6000	6500

Case

Related video

---

Previous:EPS Fish Box Making Machine With Good Quality

Next:Full automatic EPS Insert Block Making Machine With Factory Price

---

With a steadfast dedication to quality, we at DongShen, ensure our machines provide you with superior performance that stands second to none. The high-efficiency EPS Foam Cutting Machine is the epitome of our commitment to consistent innovation. Every single element in this machine is meticulously engineered to boost productivity and minimize wastage, promising you not just excellence, but sustainable operations too. Witness firsthand how our EPS Foam Cutting Machine transforms your production line with its unrivaled effectiveness. It is more than just machinery—it is a testament to DongShen's dedication to providing industries with the absolute best in technology. Let our EPS Foam Cutting Machine be your companion in crafting superior quality packaging products that not only meet but exceed the expectations of your clientele. Dive into the world of performance excellence with DongShen's EPS Foam Cutting Machine, where efficiency meets quality.
