Introducing our innovative product - the Electric Styrofoam Foam Cutter, which is a dedicated Expanded Polystyrene (EPS) Shape Moulding Machine from DongShen. Specifically designed to revolutionize EPS packaging, this machine functions in synergy with a mould to produce a variety of packaging products. This includes packaging for electrical appliances, cushioning for vegetable and fruit boxes, and seedling trays, among others. The Electric Styrofoam Foam Cutter is not just a machine but a solution that caters to diverse industries. Whether you're in the electronics sector looking to adeptly package your products or in the agriculture sector seeking to protect your seedlings, this machine offers an efficient solution. The Electric Styrofoam Foam Cutter, powered by DongShen, is designed to elevate your packaging process, ensuring each package is perfectly tailored to its contents. Beyond packaging, this high-quality machine offers the ability to create custom shapes which is advantageous in diverse industries. From custom packaging to artistic creations, the machine's innovative design provides precision and efficiency.

Product Details

Expanded Polystyrene Packaging Machine is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF etc. With different moulds, the machine can produce different shape.

Energy saving type shape molding machine has efficient vacuum system, fast hydraulic system, and fast drainage system. For the same product, cycle time in E type machine is 25% shorter than in normal machine, and energy consumption is 25% less.

Machine completes with PLC, touch screen, filling system, efficient vacuum system, hydraulic system, electric box

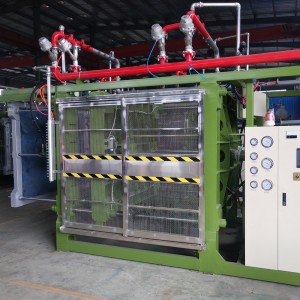

FAV1200E-1750E  Expanded Polystyrene Packaging Machine (High Efficiency)

Main Features

1.Machine plates are made of thicker steel plates so it’s long lasting;
2.Machine has efficient vacuum system, vacuum tank and condenser tank separate;
3.Machine use fast hydraulic system, saving mould closing and opening time;
4.Different filling methods are available to avoid filling problem in special products;
5.Machine uses big pipe system, allowing low pressure steaming. 3~4bar steam can work the machine;
6.Machine steam pressure and penetration steaming are controlled by German Pressure manometer and pressure regulators;
7.Components used in the machine are mostly imported and famous branded products, low malfunction;
8.Machine with lifting legs, so client only need to make a simple working platform for workers.

Main Technical Parameters

Item		Unit	FAV1200E	FAV1400E	FAV1600E	FAV1750E
Mould Dimension		mm	1200*1000	1400*1200	1600*1350	1750*1450
Max Product Dimension		mm	1000*800*400	1200*1000*400	1400*1150*400	1550*1250*400
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3’’(DN80)	4’’(DN100)	4’’(DN100)	4’’(DN100)
	Consumption	Kg/cycle	4~7	5~9	6~10	6~11
	Pressure	Mpa	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Cooling Water	Entry	Inch	2.5’’(DN65)	3’’(DN80)	3’’(DN80)	3’’(DN80)
	Consumption	Kg/cycle	25~80	30~90	35~100	35~100
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Low Pressure Entry	Inch	2’’(DN50)	2.5’’(DN65)	2.5’’(DN65)	2.5’’(DN65)
	Low Pressure	Mpa	0.4	0.4	0.4	0.4
	High Pressure Entry	Inch	1’’(DN25)	1’’(DN25)	1’’(DN25)	1’’(DN25)
	High Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
	Consumption	m³/cycle	1.5	1.8	1.9	2
Drainage		Inch	5’’(DN125)	6’’(DN150)	6’’(DN150)	6’’(DN150)
Capacity15kg/m³		S	60~110	60~120	60~120	60~120
Connect Load/Power		Kw	9	12.5	14.5	16.5
Overall Dimension(L*W*H)		mm	4700*2000*4660	4700*2250*4660	4800*2530*4690	5080*2880*4790
Weight		Kg	5500	6000	6500	7000

Case

Related video

---

Previous:EPS Styrofoam Decoration Production Line from China

Next:Factory Supply EPS Styrofoam Seeding Tray Making Machine

---

The combination of our comprehensive technology, the Electric Styrofoam Foam Cutter, and your vision, can transform ordinary packaging into a value-added element of your product. Whether you're aiming to enhance product protection, improve aesthetic appeal, or increase branding potential, this machine delivers on all fronts. With DongShen's Electric Styrofoam Foam Cutter, you're investing in a machine that guarantees precision, quality, and innovative packaging solutions. Leverage this technology to stand out in your market and deliver products that are professionally packaged, ensuring maximum protection and appeal. Invest in our Electric Styrofoam Foam Cutter today and elevate your packaging process.
