Introducing the EPS Pelletizer, Dongshen's high-quality Thermocol Plate Making Machine. This innovative machine is specifically designed to create expanded polystyrene (EPS) blocks, which can then be precisely cut into sheets. These sheets are commonly used for a myriad of applications, including house insulation and packaging. Our EPS Pelletizer leverages advanced technology to enable the production of EPS blocks. Its high efficiency and speed in transforming raw materials into EPS make it the definitive solution for industries looking for a reliable plate making machine. With its robust design and exceptional durability, the EPS Pelletizer ensures consistent output, minimizing operational disruptions and maximizing productivity.

Product Details

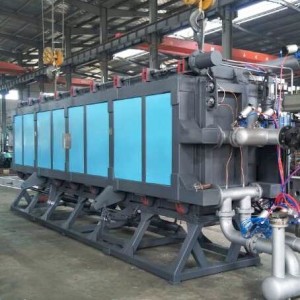

Thermocol plate making machine is used to make EPS blocks, then cut to sheets for house insulation or packing. Popular products made from EPS sheets are EPS sandwich panels, 3D panels, inner and outer wall insulation panels, glass packing, furniture packing etc.

Thermocol plate making machine is suitable for small capacity request and low density blocks production, it’s economic EPS machine. With special technology, our thermocol plate making machine can make 4g/l density blocks, block is straight and of good quality.

Machine completes with main body, control box, blower, weighing system etc.

Main Features

1. The machine adopts Mitsubishi PLC and Winview touch screen for automatic mould opening, mould closing, material filling, steaming, temperature keeping, air cooling, demoulding and ejecting.
2. Machine’s all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature;
3. Mould cavity is made of special aluminum alloy plate with high-efficiency heat conduction, aluminum plate thickness 5mm, with Teflon coating for easy demoulding.
4. The machine set up high-pressure blower for suction material. Cooling is done by convection air by blower.
5. Machine plates are from high-quality steel profile, through heat treatment, strong and no deformation.
6. Ejection is controlled by hydraulic pump, so all ejectors push and return at same speed;

Main Technical Parameters

Item		Unit	PB2000A	PB3000A	PB4000A	PB6000A
Mould Cavity Size		mm	2040*1240*630	3060*1240*630	4080*1240*630	6100*1240*630
Block Size		mm	2000*1200*600	3000*1200*600	4000*1200*600	6000*1200*600
Steam	Entry	Inch	DN80	DN80	DN100	DN150
	Consumption	Kg/cycle	18~25	25~35	40~50	55~65
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Compressed Air	Entry	Inch	DN40	DN40	DN50	DN50
	Consumption	m³/cycle	1~1.2	1.2~1.6	1.6~2	2~2.2
	Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Drainage	Steam Vent	Inch	DN100	DN150	DN150	DN150
Capacity 15kg/m³		Min/cycle	4	5	7	8
Connect Load/Power		Kw	6	8	9.5	9.5
Overall Dimension (L*H*W)		mm	3800*2000*2100	5100*2300*2100	6100*2300*2200	8200*2500*3100
Weight		Kg	3500	5000	6500	9000

Case

Related video

---

Previous:Expanded Polystyrene Foam Block Making Machine

Next:EPS foam panel making machine made in china

---

By choosing our EPS Pelletizer, you're selecting a machine that has undergone rigorous testing to ensure it meets the highest industry standards. What’s more, Dongshen is committed to providing comprehensive customer support, ensuring that your Thermocol Plate Making Machine operates at its full potential for the long-term. Optimize your insulation and packing needs by incorporating our state-of-the-art EPS Pelletizer. This machine offers a seamless and efficient process, guaranteed to save time and increase productivity. With the EPS Pelletizer, you can exceed industry standards and achieve unparalleled results. Experience the epitome of performance, efficiency, and reliability, only with Dongshen's EPS Pelletizer.
