Discover the transformative power of DongShen's Automatic Styrofoam Shape Molding Machine with Vacuum, a game-changer in the field of EPS Foam Blocks production. Our advanced equipment, designed for versatility and reliability, is the key to streamlining your manufacturing process. Every sector, from electrical packaging to agriculture, recognizes the importance of high-quality EPS Foam Blocks for their operations. DongShen, a reputable industry name, brings you a state-of-the-art machine that effectively produces these vital components, ensuring a flawless production process. Our automatic molding machine, integrated with a vacuum, is specifically tailored to work in unison with specialized molds. This enables the seamless creation of wide-ranging packaging products such as sturdy vegetable and fruit boxes, customizable electrical packing, and functional seedling trays.

Product Details

Automatic Styrofoam Molding Machine with vacuum is used together with mould to produce packaging products like electrical packing, vegetable and fruit boxes, seedling trays etc. and construction products like brick insert and ICF etc. With different moulds, the machine can produce different shape.

Energy saving type shape molding machine has efficient vacuum system, fast hydraulic system, and fast drainage system. For the same product, cycle time in E type machine is 25% shorter than in normal machine, and energy consumption is 25% less.

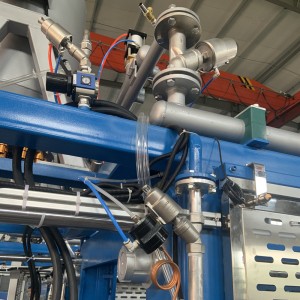

Machine completes with PLC, touch screen, filling system, efficient vacuum system, hydraulic system, electric box

FAV1200E-1750E Automatic Styrofoam Molding Machine with vacuum (High Efficiency)

Main Features

1.Machine plates are made of thicker steel plates so it’s long lasting;
2.Machine has efficient vacuum system, vacuum tank and condenser tank separate;
3.Machine use fast hydraulic system, saving mould closing and opening time;
4.Different filling methods are available to avoid filling problem in special products;
5.Machine uses big pipe system, allowing low pressure steaming. 3~4bar steam can work the machine;
6.Machine steam pressure and penetration steaming are controlled by German Pressure manometer and pressure regulators;
7.Components used in the machine are mostly imported and famous branded products, low malfunction;
8.Machine with lifting legs, so client only need to make a simple working platform for workers.

Main Technical Parameters

Item		Unit	FAV1200E	FAV1400E	FAV1600E	FAV1750E
Mould Dimension		mm	1200*1000	1400*1200	1600*1350	1750*1450
Max Product Dimension		mm	1000*800*400	1200*1000*400	1400*1150*400	1550*1250*400
Stroke		mm	150~1500	150~1500	150~1500	150~1500
Steam	Entry	Inch	3’’(DN80)	4’’(DN100)	4’’(DN100)	4’’(DN100)
	Consumption	Kg/cycle	4~7	5~9	6~10	6~11
	Pressure	Mpa	0.4~0.6	0.4~0.6	0.4~0.6	0.4~0.6
Cooling Water	Entry	Inch	2.5’’(DN65)	3’’(DN80)	3’’(DN80)	3’’(DN80)
	Consumption	Kg/cycle	25~80	30~90	35~100	35~100
	Pressure	Mpa	0.3~0.5	0.3~0.5	0.3~0.5	0.3~0.5
Compressed Air	Low Pressure Entry	Inch	2’’(DN50)	2.5’’(DN65)	2.5’’(DN65)	2.5’’(DN65)
	Low Pressure	Mpa	0.4	0.4	0.4	0.4
	High Pressure Entry	Inch	1’’(DN25)	1’’(DN25)	1’’(DN25)	1’’(DN25)
	High Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
	Consumption	m³/cycle	1.5	1.8	1.9	2
Drainage		Inch	5’’(DN125)	6’’(DN150)	6’’(DN150)	6’’(DN150)
Capacity15kg/m³		S	60~110	60~120	60~120	60~120
Connect Load/Power		Kw	9	12.5	14.5	16.5
Overall Dimension(L*W*H)		mm	4700*2000*4660	4700*2250*4660	4800*2530*4690	5080*2880*4790
Weight		Kg	5500	6000	6500	7000

Case

Related video

---

Previous:Full automatic EPS Insert Block Making Machine With Factory Price

Next:EPS Styrofoam Decoration Production Line from China

---

One of the key attributes of our machine is its eco-friendly nature. Crafting EPS Foam Blocks with this automatic molding machine ensures the production process is clean, reducing environmental impact and adhering to sustainable practices. As a company, DongShen is committed not only to meeting client demands but also to fostering a greener economy. The power of our Automatic Styrofoam Shape Molding Machine transcends beyond its functionality. Its capacity to produce EPS Foam Blocks efficiently makes it an absolute essential for any business seeking to optimize its packaging solutions. Join the DongShen family today and experience an unprecedented boost in your production process.
