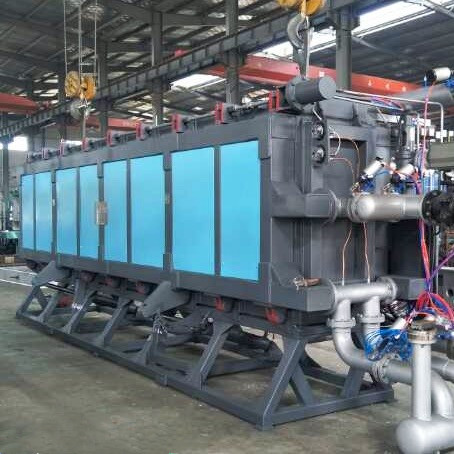

2020 China New Design Eps Beads Production Line - Thermocol Plate Making Machine – DONGSHEN
2020 China New Design Eps Beads Production Line - Thermocol Plate Making Machine – DONGSHENDetail:
Product Details
Main Features
1. The machine adopts Mitsubishi PLC and Winview touch screen for automatic mould opening, mould closing, material filling, steaming, temperature keeping, air cooling, demoulding and ejecting.
2. Machine’s all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature;
3. Mould cavity is made of special aluminum alloy plate with high-efficiency heat conduction, aluminum plate thickness 5mm, with Teflon coating for easy demoulding.
4. The machine set up high-pressure blower for suction material. Cooling is done by convection air by blower.
5. Machine plates are from high-quality steel profile, through heat treatment, strong and no deformation.
6. Ejection is controlled by hydraulic pump, so all ejectors push and return at same speed;
Main Technical Parameters
Item | Unit | PB2000A | PB3000A | PB4000A | PB6000A | |
Mould Cavity Size | mm | 2040*1240*630 | 3060*1240*630 | 4080*1240*630 | 6100*1240*630 | |
Block Size | mm | 2000*1200*600 | 3000*1200*600 | 4000*1200*600 | 6000*1200*600 | |
Steam | Entry | Inch | DN80 | DN80 | DN100 | DN150 |
Consumption | Kg/cycle | 18~25 | 25~35 | 40~50 | 55~65 | |
Pressure | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Compressed Air | Entry | Inch | DN40 | DN40 | DN50 | DN50 |
Consumption | m³/cycle | 1~1.2 | 1.2~1.6 | 1.6~2 | 2~2.2 | |
Pressure | Mpa | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | 0.6~0.8 | |
Drainage | Steam Vent | Inch | DN100 | DN150 | DN150 | DN150 |
Capacity 15kg/m³ | Min/cycle | 4 | 5 | 7 | 8 | |
Connect Load/Power | Kw | 6 | 8 | 9.5 | 9.5 | |
Overall Dimension (L*H*W) | mm | 3800*2000*2100 | 5100*2300*2100 | 6100*2300*2200 | 8200*2500*3100 | |
Weight | Kg | 3500 | 5000 | 6500 | 9000 | |
Case
Related video
Product detail pictures:
Related Product Guide:
We aim to find out high quality disfigurement in the generation and provide the most effective services to domestic and abroad clients wholeheartedly for2020 China New Design Eps Beads Production Line - Thermocol Plate Making Machine – DONGSHEN, The product will supply to all over the world, such as: Armenia, Bulgaria, Mozambique, We have more than 10 years exported experience and our products have expored more than 30 countries around the word . We always hold the service tenet Client first,Quality first in our mind,and are strict with product quality. Welcome your visiting!
